Multiple Output Deuterium Lamp Power Supply For Stepper Motor Amplifying Circuit

multi-output power supply ,+5V,12V,-15V,+5V for tungsten lamp ,stepper motor,amplifying circuit

OWPS-035 Multi-output power supply

Part1..............................................................................................................Introduction

Part 2..................................................................................... Environmental Requirement

Part 3................................................................................................ Technical parameters

Part 4....................................................................................................................... Wiring

Part 5....................................................................................................... Light up the lamp

Part 6............................................................................................. Installation and Cooling

Part 7......................................................................................... Transportation and storage

Part 8..........................................................................................Maintenance and attention

Part 1:Introduction

OWPS-035 series multi-output power supply was developed by OWO team in 2014,and its perfect replacement for expensive original models, the product has CE proved and 18 months warranty.

OWO now offer special power supply that is commonly used in UV spectra chromatography , atomic absorption, UV-Visible spectrophotometer ,other spectroscopic equipments and also can be connect with tungsten lamp.

OWPS-035 series multi-output power supply workable from 90V-265V AC, it has tungsten lamp control port and signal port, external controlling available (CPU or manual signal). there are 5 output ports for widely usage.

5V/3A,used for CPU, display, micro printer or stepper motor;

±15V/1A, generally used for amplifying circuits;

12V/4A,used to stepper motor or cooling fans;

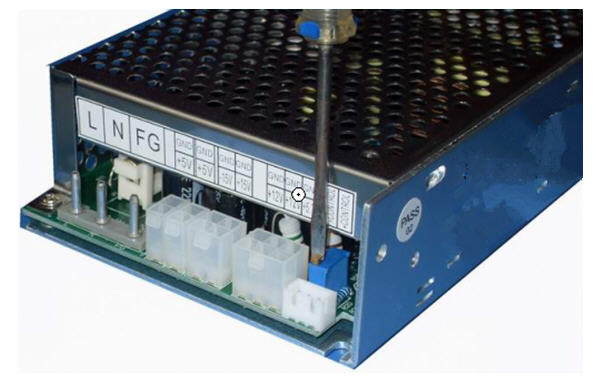

Tungsten lamp output: 6V (adjustment range:5.0-5.7V )or12V(adjustment range:10.5-11.5V ) with high precision and professional design, apply to the tungsten lamp used in analytical instrument

Part 2: Environmental Requirement

1. operating environment:

Temp.: 0-40℃

RH: 40℃(20-90)% RH

Pressure: 86-106 KPa

2. storage environment:

Temp.: -40-70℃

RH: 50℃ 90% RH

Pressure: 86-106 KPa

Part 3:Technical parameters

stepper motor supply

stepper motor power

uv lamp power supply

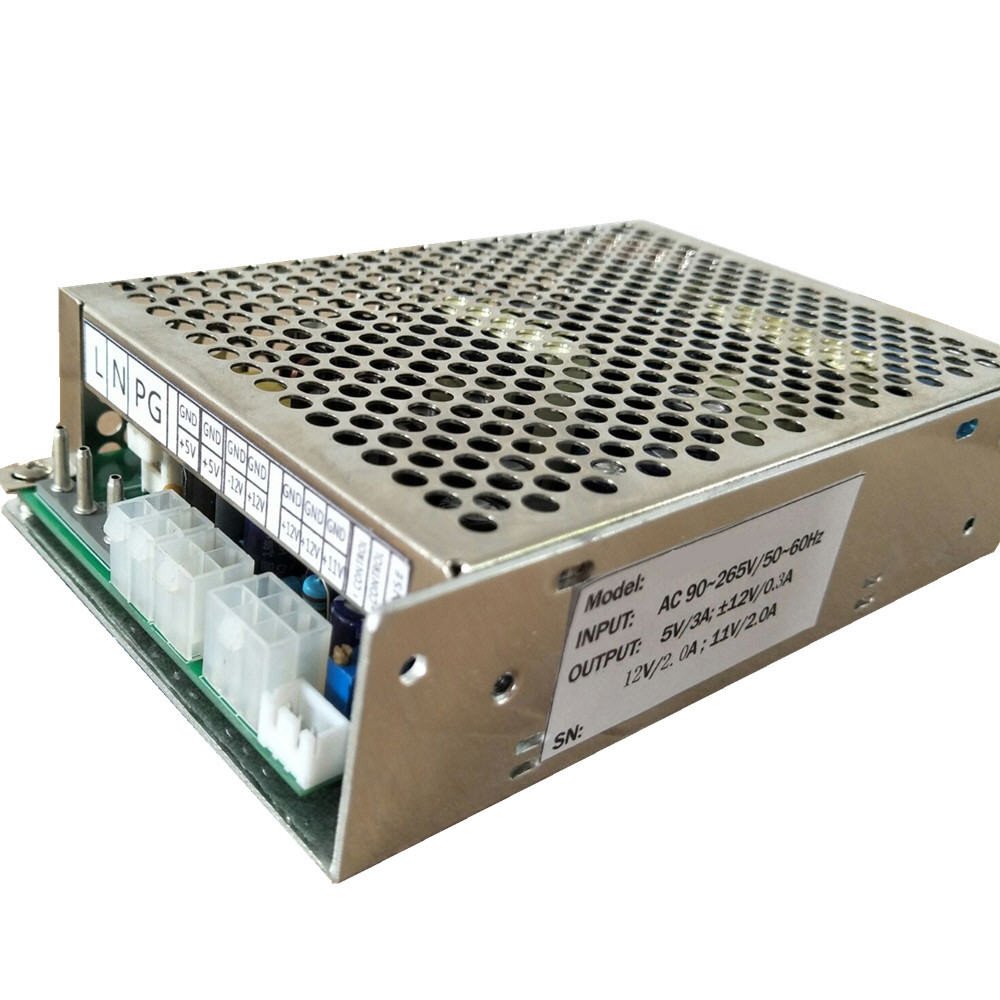

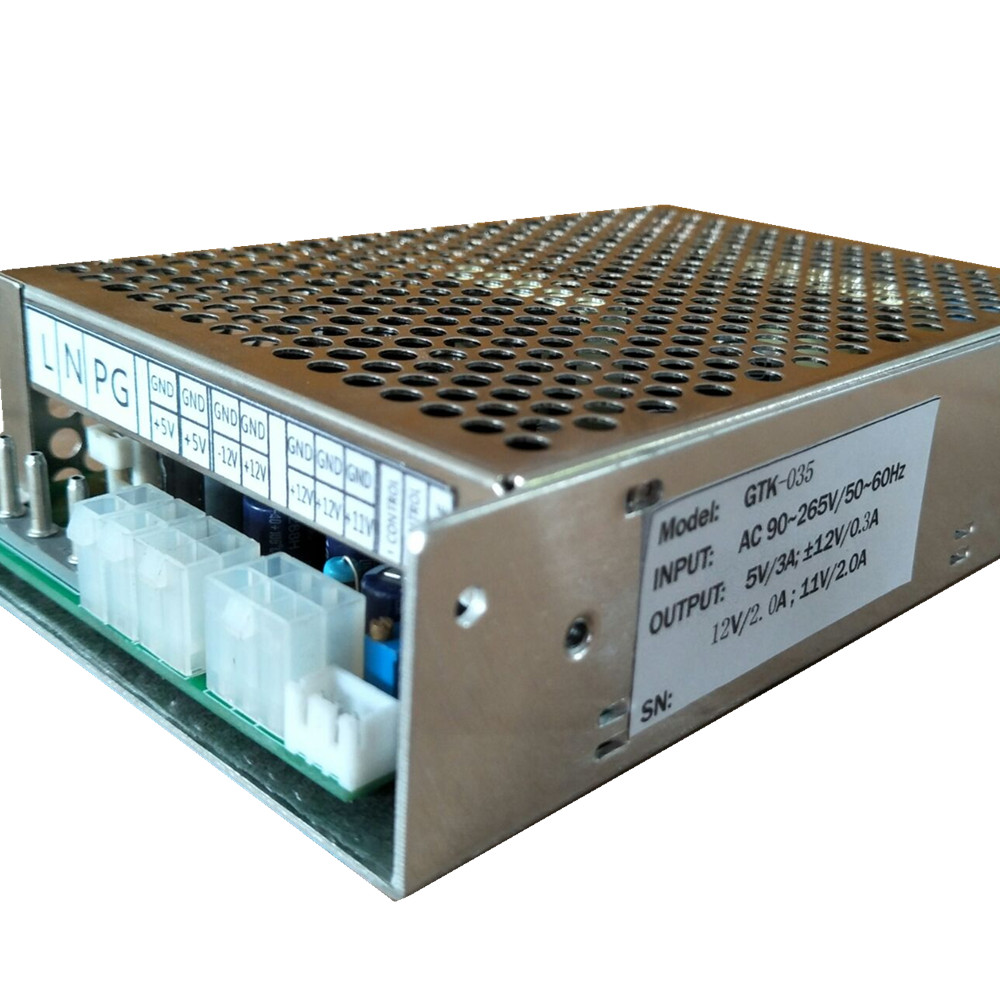

Multiple Output Deuterium Lamp Power Supply For Stepper Motor Amplifying Circuit Images
