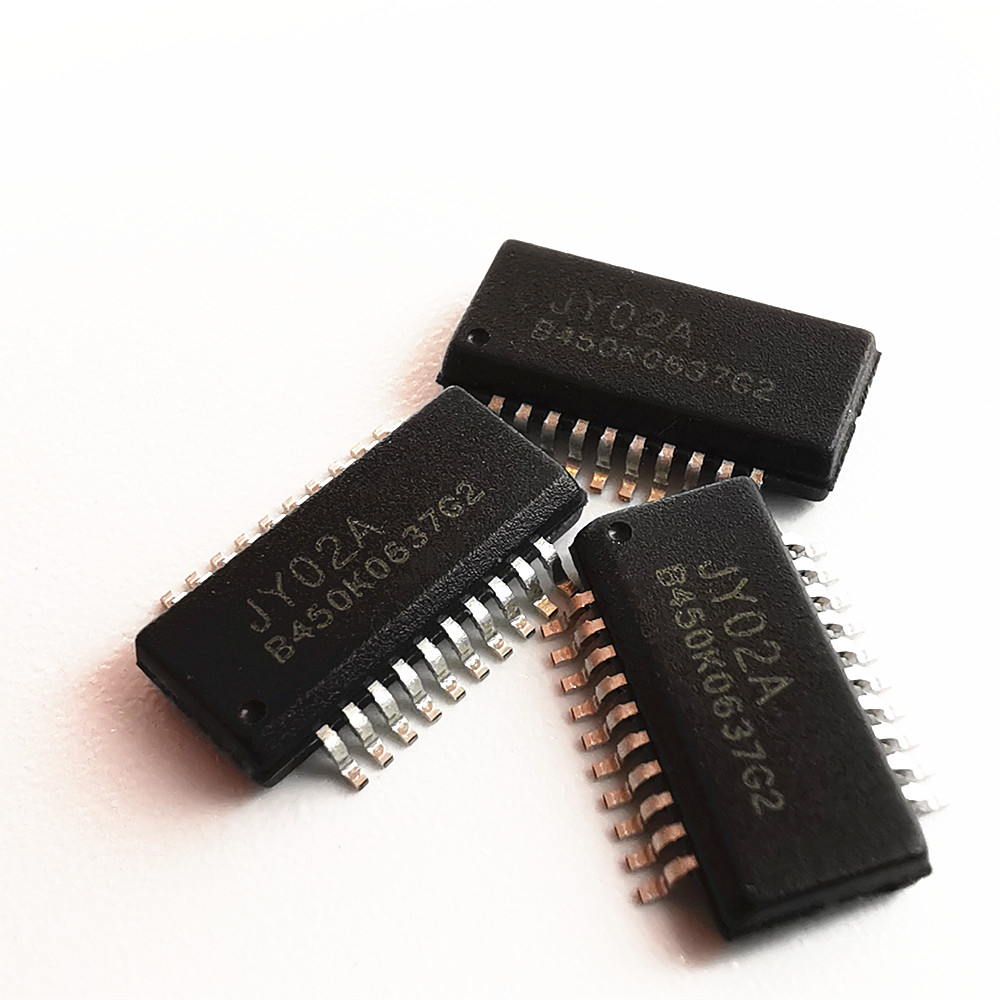

brushless DC motor control IC JY02A ,specifically for sensorless BLDC motor
Sensorless Brushless DC motor control IC
In order to improve the performance of sensorless brushless DC motor, compact the volume, reduce the cotsts of production and design ,our company has devaloped a single-chip IC for sensorless burshless DC motor driver which no need connect external counter electromotive force detection circuit .
JY02A has built-in anti-electromotive force detection circuit EMF and no need external comparator, integrated voltage detection VOD, current detection iS, soft start time adjust S time, start torque adjust Torque, speed signal FG,enable control of EL, positive and reverse control of ZF, stepless speed regulation, etc., JY02A has overpressure and undervoltage protection, and has constant Flow drive and short circuit protection function, JY02A is mainly used for brushless dc brushless motor driven, with application convenience,The peripheral circuit is simple and low cost. The SPWM drive mode has low noise, high efficiency and stable quality With professional technical support, JY02A is widely used in wide range of products, such as: all kinds of dc brushless fan, dc brushless water pump,Lawn mowers, scooters, balance cars, beach cars, robots, scientific instruments, fuel pumps, electric vehiclesWindow, electric chair adjustment, air conditioning fan, electric rear-view mirror adjustment, household appliances such as vacuum cleaner, air conditioning, water heating equipment, high-end children's toys, model, model, model, etc.It has also been widely used in handheld tools,Such as grinding machine, hand electric drill, engraving machine, electric screwdriver, etc
Features:
Working voltage: 4.5 v-5.5 V.
Working temperature: -55-125 ℃
Drive mode: SPWM
Daul drive mode : With Hall senor or sensorless
Adaptive motor: no hall motor/hall motor.
Steering control: positive/negative
Soft reversing: Yes
Speed signal: Yes
Overload protection: Yes
Current closed loop: Yes
Constant current drive: Yes
Blocking protection: Yes
starting torque regulation:Yes
Soft starting: Yes
Special technology: JYKJ full condition safety start function
Speed adjustment: linear
EAI self-adaptation function

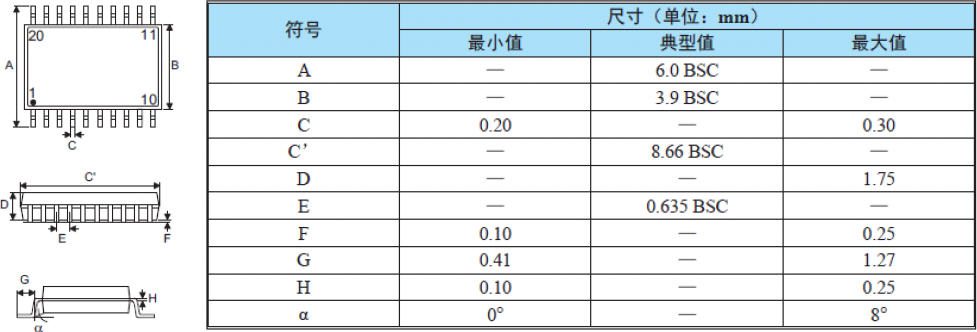

Dimensions:

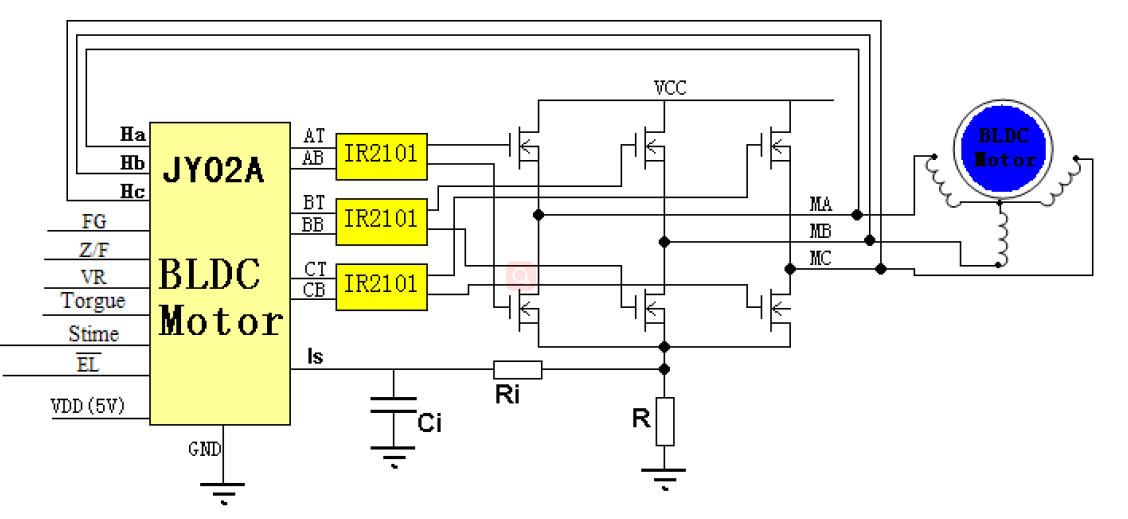

Typical applications
Contact us for more details
We offer ODM service as customized requests
